THE FAST & SIMPLE WAY TO GET LOCATION MICS IN PHASE

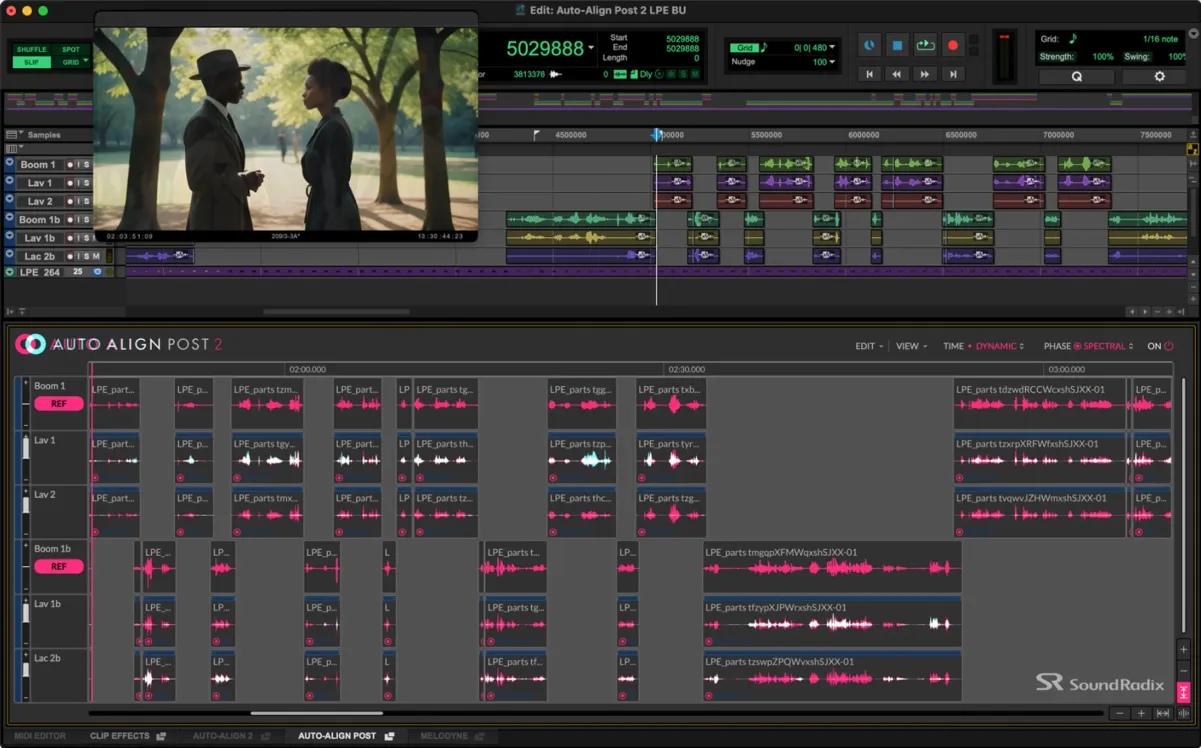

AUTO-ALIGN POST is an AAX AudioSuite plug-in for Avid Pro Tools, designed to automatically correct the delay and comb-filter phase issues occurring when mixing a recording of multiple moving microphones, such as in the case of a shoot set-up using a boom microphone in addition to an actor’s lavalier microphone or multiple on-set microphones.

Until now, phase/time aligning multiple moving microphones was a tedious, time-consuming job that often required several ear-twisting days to complete.

Not anymore.

Building on the proprietary technology of our groundbreaking Auto-Align™ plug-in, we’ve developed a next-generation algorithm that makes phase/time correction of a moving multi-microphone recording of an entire film a matter of a few clicks and a short coffee break.

FAST & SIMPLE

Days of work are now a matter of ‘select’, ‘click’ and you’re done. That simple.

“IT JUST WORKS”

“It’s helped me in my workflow to give me options and it’s very satisfying to do just two clicks, have everything in sync, I don’t have to zoom in to the waveform level, futz it around and make sure that the waveforms are in sync. It just works.”

- Justin Walker, The Dub Stage, Los Angeles

DYNAMIC & STATIC MODE

Whether it’s a moving drama or still life, AUTO-ALIGN POST has got you covered.

UP TO THE CHALLENGE

“I deliberately created a piece of content to try it out where I set up a fixed boom mic and put a personal radio mic on myself and then walked around in a reverberant space, and when I came to play it back, it was like ‘wow’.”

- Mike Thornton, Production Expert Editor, London

MULTI-CHANNEL SUPPORT

Supports sample-locked sum-alignment of up to 48 channels in a single pass.

“KINDA BLEW ME AWAY”

“For years I wanted a plug-in that simply lined-up different mics and do it dynamically. AUTO-ALIGN POST is very simple, it does exactly what I wanted it to do, it lines-up all the mics. It kinda blew me away, I have to be honest, I was a little skeptical of it working but it just simply works, it’s great.”

- Ian Stynes, Great City Post, New York

FEATURES

  • Corrects for distances of up to ~112 feet / ~34 meters or a delay of ±100ms
  • Dynamic mode enables continuous phase/time correction for moving actors or cameras
  • Static mode enables fixed phase/time correction for stationary microphones
  • Transparent, filter-free design
  • Multi-channel support
  • Highly optimized for CPU efficiency and operation speed
  • Easy to operate - no manual adjustments required

SYSTEM REQUIREMENTS
  • Mac: Intel Core 2 Duo CPU, 4GB RAM, OS X 10.7 or higher
  • Windows: Intel Core 2 Duo CPU, 4GB RAM, Windows 7 or higher
  • Plug-in formats: AudioSuite on Pro Tools 10.3.5 or higher. (Media Composer is not supported)
  • Free iLok account and iLok License Manager (iLok USB key is not required)

2018-08-26:
Version 1.0.1

Read More >>
Fixed
  • Maximum delay was incorrectly applied to processed clip when reference track was only silence.
  • Left handle could have an extraneous delay applied in Clip by Clip mode.
  • Static mode button appeared deselected even when it was set after opening saved session.
Improved
  • Performance improvement for cases where the track and reference have no common content in any possible delay.
